Newton

The Victron range of Inverter/Chargers provide advanced solutions to ensure that Newton Pumping Systems continue pumping during power interruption by inverting 12V DC power from a battery (or multiple batteries) to clean and efficient 230 V AC power. The battery backup range includes 4 specifically sized Inverter/Charger units plus a number of ancillaries to provide advanced system control and telemetry. For the ultimate in battery backup protection, the top-of-the-range Quattro unit is mated with a generator that recharges the batteries once they reach a predetermined state of depletion, to give unequalled protection against power outage.

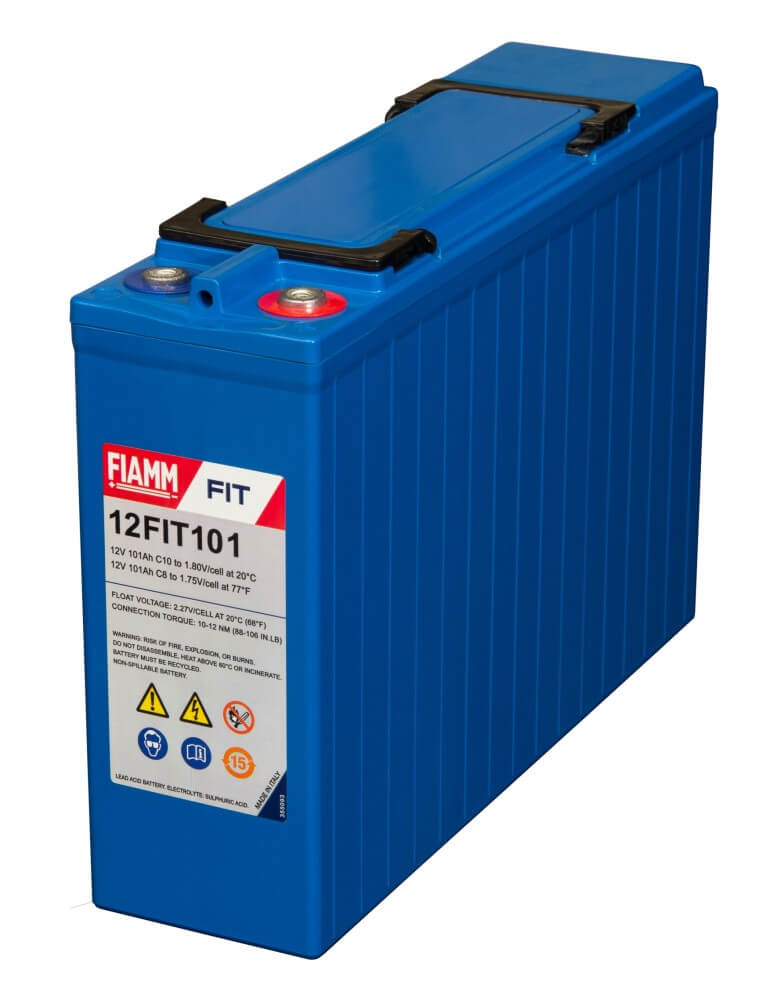

The Victron Inverter/Charger units draw 12 V power from a single or a bank of 12 V batteries which is inverted into clean, pure sine wave, 230 V power. Newton sell high performance, telecommunications grade batteries of the following sizes: 60 Ah – 12V – Code BB20, 101 Ah – 12V – Code BB21, 201 Ah – 12V – Code BB22

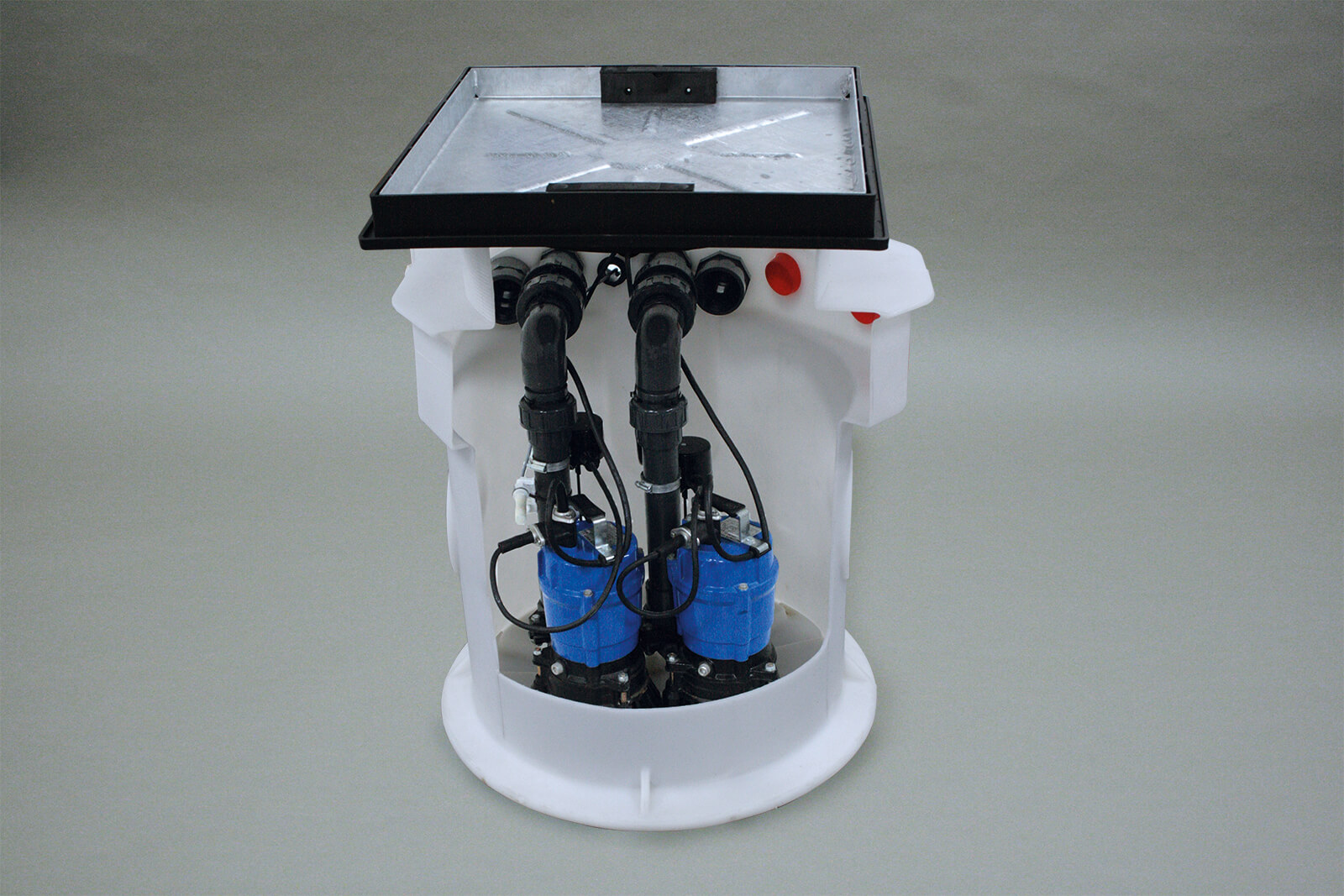

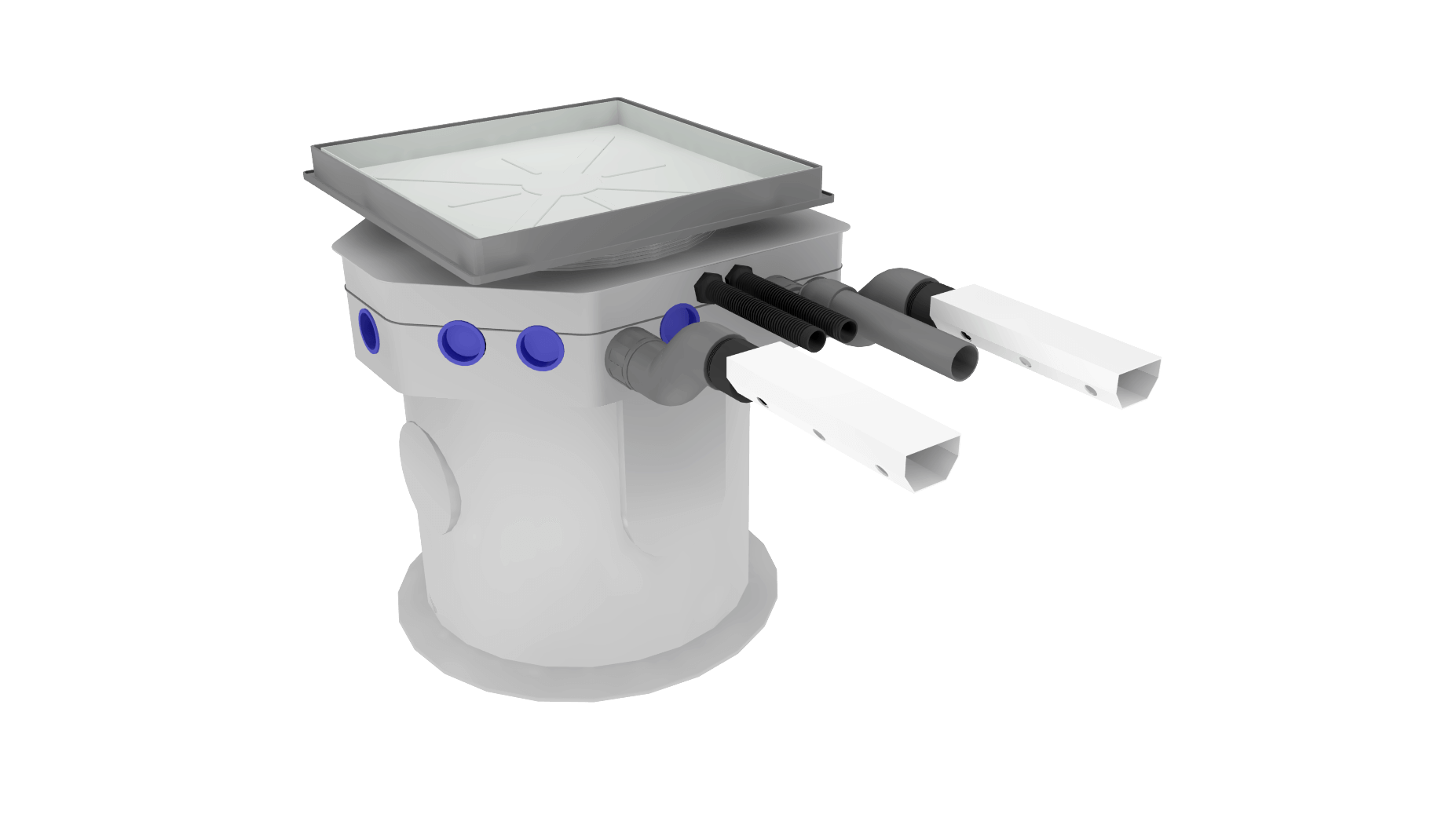

The Newton Titan-Pro Packaged Sump System is designed specifically to be used with the Newton CDM,Type C, internally applied, cavity drain waterproofing system. The adjustable neck allows for the sump to be installed at a fixed height relative to the slab so that the connection in from the Newton drainage system and the pump discharge line are made above the concrete, and always at the same height relative to the slab or raft. The sump can be used with single and twin pumps, and twin pumps with twin discharge lines for greater pump efficiency. The unique sump shape, together with a choice of inlet and outlet positions, allow for connections in and out of the chamber to be made to either a side wall, or to a corner.

The Newton Titan-Pro Packaged Sump System is designed specifically to be used with the Newton CDM,Type C, internally applied, cavity drain waterproofing system. The adjustable neck allows for the sump to be installed at a fixed height relative to the slab so that the connection in from the Newton drainage system and the pump discharge line are made above the concrete, and always at the same height relative to the slab or raft. The sump can be used with single and twin pumps, and twin pumps with twin discharge lines for greater pump efficiency. The unique sump shape, together with a choice of inlet and outlet positions, allow for connections in and out of the chamber to be made to either a side wall, or to a corner.

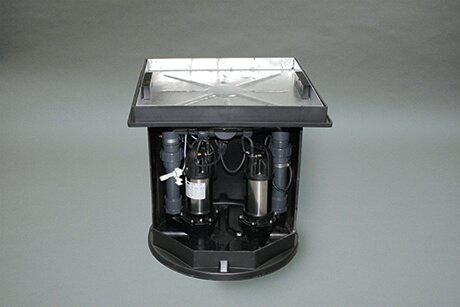

The Newton Titan-2 is a compact pumping system incorporating an octagonal sump chamber, class-leading pumps, a lock & seal lid and frame, a Newton High Water Level Alarm, internal pipework, one-way valves, and a quick release shut-off valve for quick release of the pumps for servicing. The Newton Titan-2 is ideally suited for receiving connection from rainwater gullies and surface slot drainage entering the sump through optional 110 mm wall flanges for connection to incoming pipework. The sump can be used with single pumps or twin pumps via a single discharge line. The unique octagonal sump shape ensures structural stability and provides eight large surfaces for inlets into the pump of up to 110 mm via an optional wall flange. The sump chamber also features a flared base to prevent flotation.

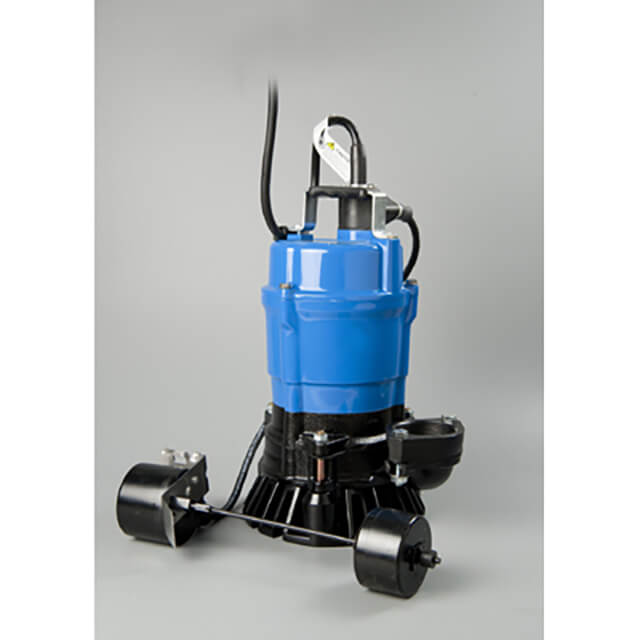

The Newton NP400 is a high quality clean water pump ideally suited for the removal of ground water from basements and cellars. The unique vertical operation float switch ensures that the pump operates within its own footprint, removing the possibility of the float snagging during operation and allowing the pump to be used within smaller sumps. The vertical float switch is also very flexible, allowing the pump switching height to be adjusted, both in terms of the height between the ‘on’ and ‘off’ positions, as well as the height relative to the pump. The Newton NP400 is suitable for use with Newton Victron Power Inverter 12/1200/50 to give continual pumping even during power outage. The NP400 is supplied with a one way check valve and is suitable for use with 50 mm or 63 mm (via an adapter) rising mains. For increased duty in a twin pump system, separate discharge lines should be used. Newton NP Pumps are supplied with a 3-year manufacturers warranty or a 5-year back-to-base warranty if the pumps are serviced by a Newton approved service engineer. The Newton NP400 is sold in both manual and automatic versions and can be purchased as pump only, or as a key component in our packaged pumping systems.

Newton 906 Lime Inhibitor is applied to concrete surfaces prior to the installation of a Newton System 500 cavity drain membrane waterproofing system to prevent the ‘leaching’ of free lime from the concrete. Primarily designed to be used on new concrete structures, Newton Lime Inhibitor should also be used to treat cut recesses in existing concrete slabs.

The Newton Titan-Pro Packaged Sump System is designed specifically to be used with the Newton CDM,Type C, internally applied, cavity drain waterproofing system. The adjustable neck allows for the sump to be installed at a fixed height relative to the slab so that the connection in from the Newton drainage system and the pump discharge line are made above the concrete, and always at the same height relative to the slab or raft. The sump can be used with single and twin pumps, and twin pumps with twin discharge lines for greater pump efficiency. The unique sump shape, together with a choice of inlet and outlet positions, allow for connections in and out of the chamber to be made to either a side wall, or to a corner.
